In english better

I can't believe, that these 2 error messages will cause your trouble.

What happens when you turn the key to first stage of "ignition"
Will you be able to start the Twizy for driving?
Probably not.
Does the display then looks like on the picture in your first post?
With pyclip you are now able to enter "TABLEAU DE BORD" and "UNITE CENTRALE HABIACLE"?
And the only error messages there are DF162 and DF180?
This would be very strange and then I have no more idea what to do.

yes it's that dfc , as the picture
i delete them and always no run
but battery is low
and charger no work
only click

yes with pyclip i can open board and other
but N/A appear , and when i clck on , all appear
but it's say i have twizy 45 , but i have twizy 80
i mount charger and repeat if u want

no when i delete dtc , only error appear

Then when i turn Key First I have not what you say

But when I turn full key I have more information
Look pictures
What I can change for delete error ? Now I have not dtc error in pyclip

Snorre schrieb: I can't believe, that these 2 error messages will cause your trouble.

What happens when you turn the key to first stage of "ignition"
Will you be able to start the Twizy for driving?
Probably not.
Does the display then looks like on the picture in your first post?
With pyclip you are now able to enter "TABLEAU DE BORD" and "UNITE CENTRALE HABIACLE"?
And the only error messages there are DF162 and DF180?
This would be very strange and then I have no more idea what to do.

hi

what do you think about my picture?
may be i m novice on pyclip
what i can do with this app

thanks

Did you check the voltage of all 14 cells?
If there are differences it causes different problems like yours.

jeltop schrieb: what do you think about my picture?
may be i m novice on pyclip
what i can do with this app

When you start the pyclip app there should be a menu point to scan the car for devices.
I suppose you already did that scan.

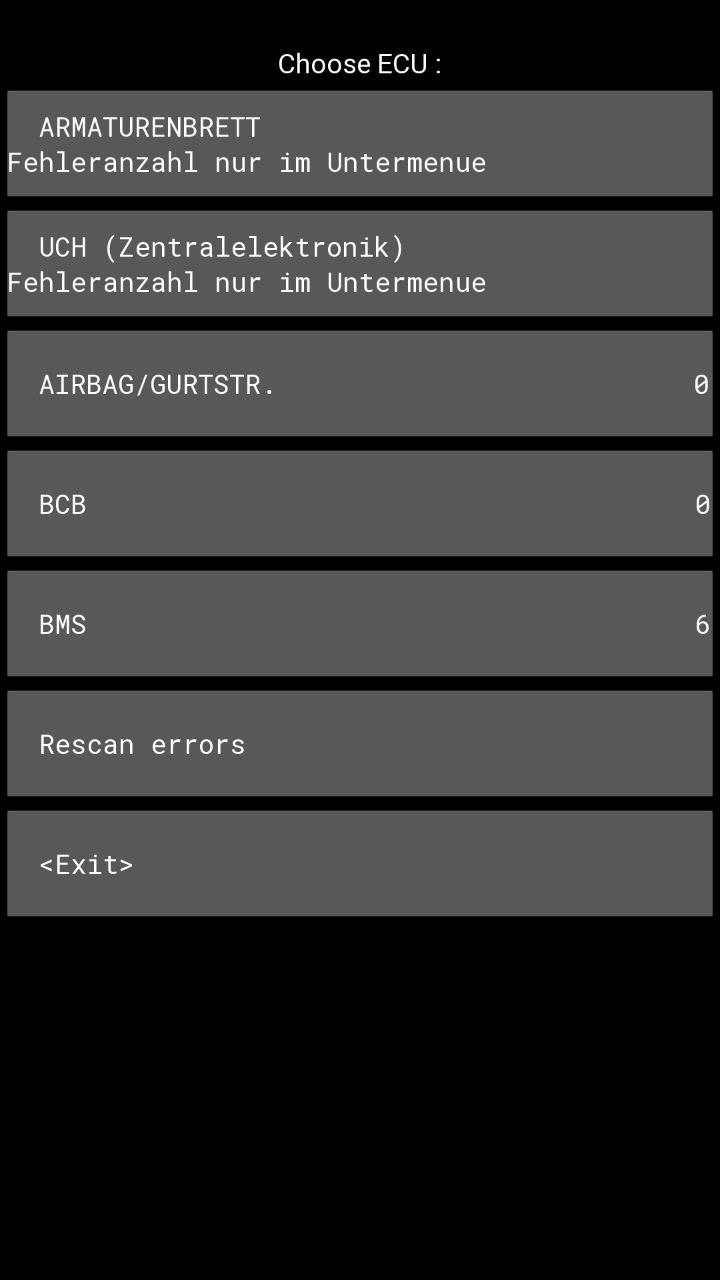

After a successful scan, the screen should look similar to this:

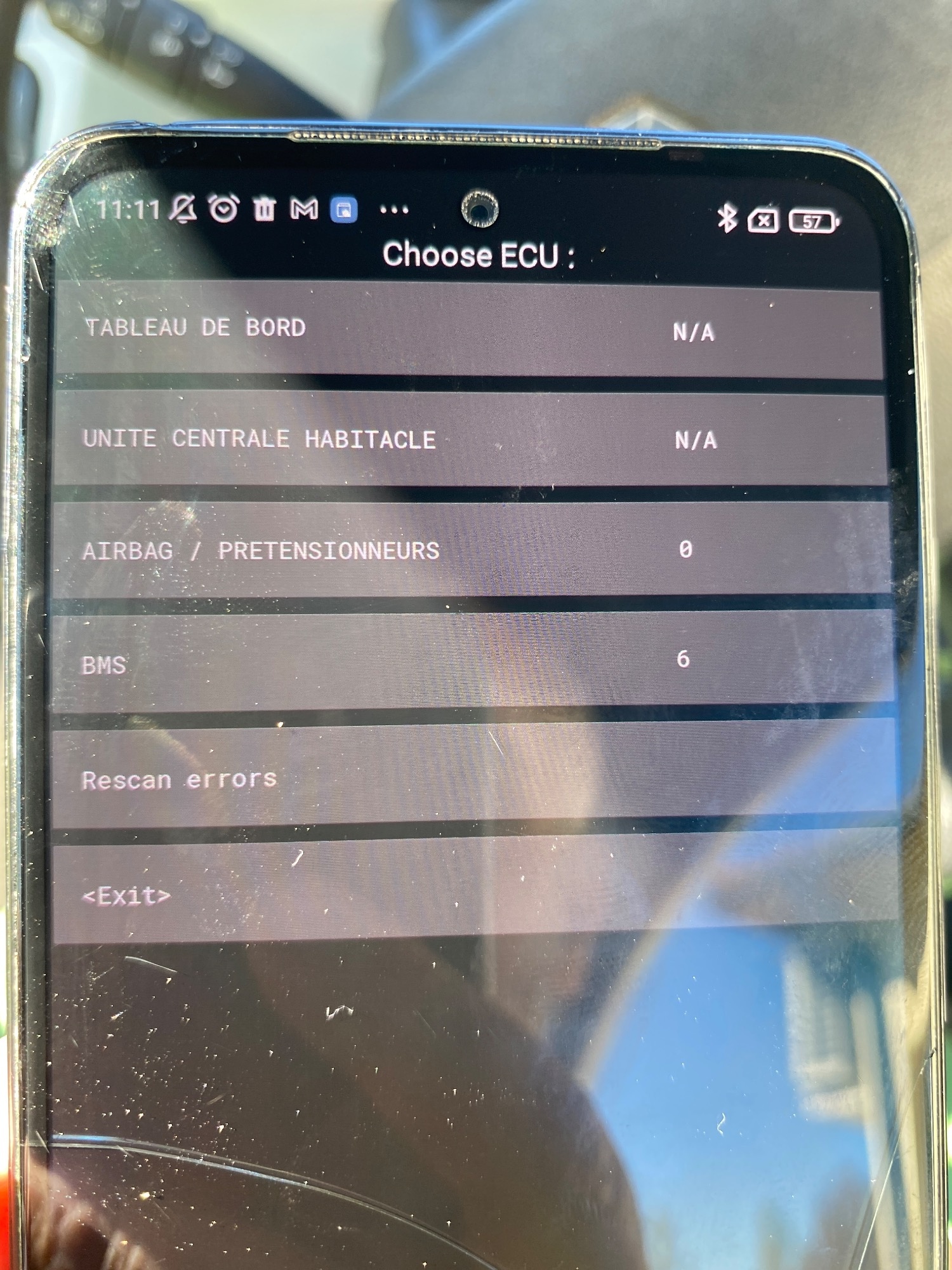

In your first post you published this photo:



So at your Twizy "BCB", which is the charger is missing.
And the menu items "TABLEAU DE BORD" and "UNITE CENTRALE HABIACLE" are marked "N/A".
I suppose you are not able to enter this meu items?

So I suppose that this is the cause of your problem.
But I can't tell you, what to do.
I think the reason could be a problem with the black 12 pin connectors and the correspondending wiring.
As long as "BCB" is missing after the scan and you are not able to enter "TABLEAU DE BORD" and "UNITE CENTRALE HABIACLE" your Twizy won't start.

For your information:
TABLEAU DE BORD <-> Armarurenbrett <-> dashboard
UNITE CENTRALE HABIACLE <-> UCH
BCB <-> battery charger block = charger

i dont know

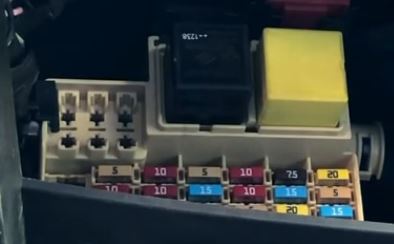

i see the fusebox in this picture
i dont have black fux in picture on my twizy ?
what is fux black relay?
for odb i use konwey 902 adaptator
and i have NA but when i open , i have indication , look picture
sometimes i have indication , sometimes i have nothing
sometimes i have bms 6
sometimes i have bms 0

Yes all 2 pair have 7.92v
And all 55.6v
