twizy current sensor

hi guys

anybody knows about twizy current sensor ?
datasheet/picture/data?

and what's the components related in this picture?

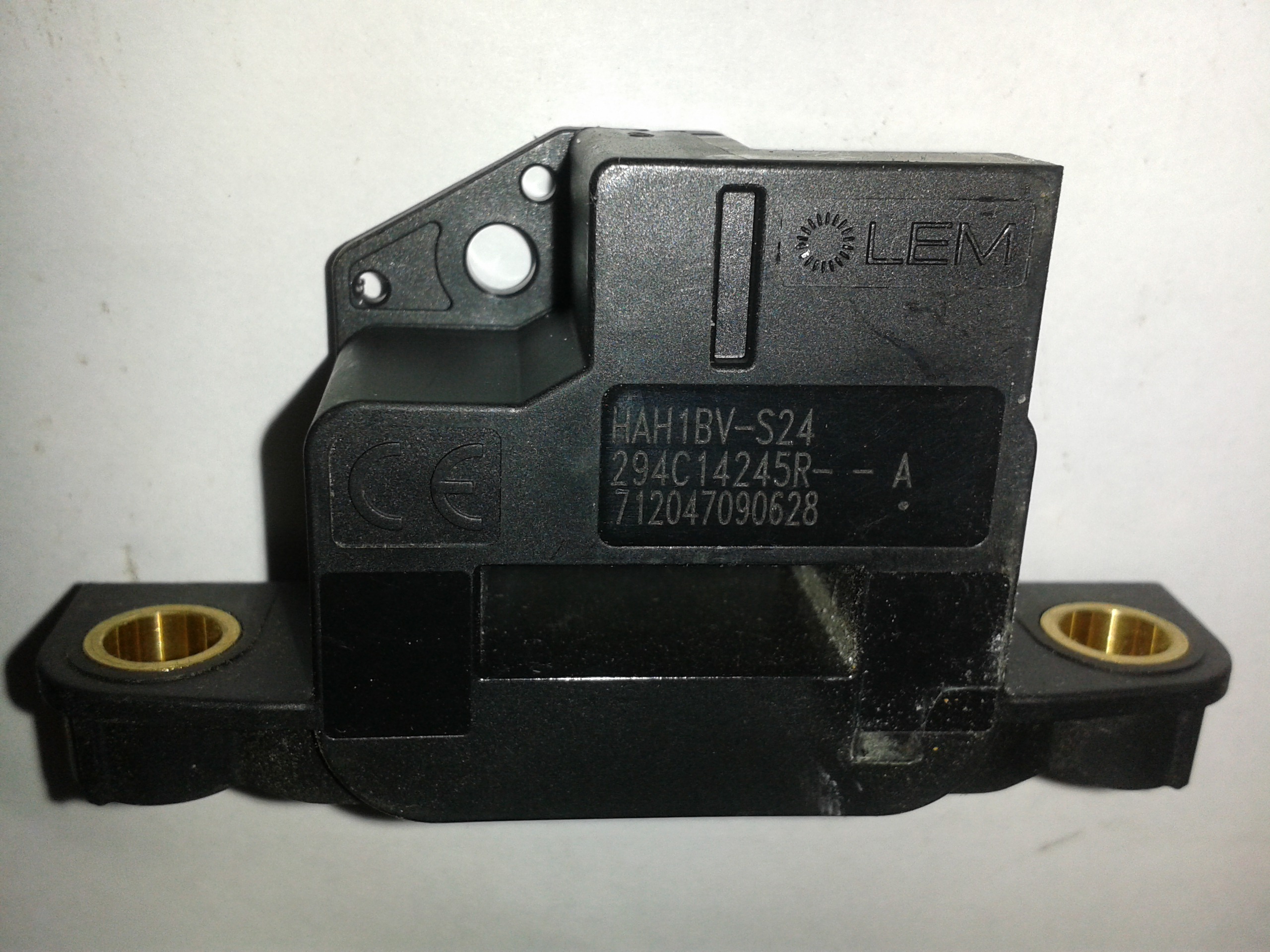

The current sensor is made by LEM
Recommended operating range is -200/+400 Ampere



Regarding the photo:

Green box= Charger Contactor
Orange box = Charger Fuse
White box = Main Contactor
Blue box = Main Fuse
Red box =Precharge relay

Michael hatte den hier gefunden: Tamura L06P400S05. Funktioniert. Gibt es bei Mouser.

mdkh71 kann wohl auch deutsch. Sonst hätte er die Frage nicht gestellt.

thank you for your reply and sorry for my writing in English , not German !

one more question, i would like to know about the SOC estimation accuracy of twizy battery pack with this current sensor ?!
and i would like to know is there any specifications for battery management system of twizy battery pack ?!

How do you measure SOC estimation accuracy? The only available clue are the SOC jumps that occur after switch-off. Those are normally in the range +- 3% and get higher if you've been driving with high currents. If the jumps are (as assumed) corrections based on the open circuit voltage, they may be indicating an error in the current measurement, but they may also indicate a calculation bug...

There are no public specs available for the LG BMS. If you find some, please share

BMS images:
www.twizy-forum.de/werkstatt-twizy/71630-innenansicht-vom-akku?limitstart=0#71645

thank you dexter

i have this board and i want to run it but i don't know about pin outs of this board. is there anybody knows about pins and their functionality ?
