BMS OVMS Anpassungen

OVMS# bms status
Voltage:
    Average: 4.104V [4.100V - 4.110V]
  Deviation: SD   3.49mV [max 3.49mV], 0 warnings, 0 alerts
Temperature:
    Average:  29.3C [ 29.0C -  30.0C]
  Deviation: SD   0.47C  [max 0.60C], 0 warnings, 0 alerts
Cells:
    +------------------------------------+--------+
  1 | 4.110V 4.100V 4.105V 4.100V 4.105V |  29.0C |
    +------------------------------------+--------+
  2 | 4.100V 4.105V 4.105V 4.105V 4.105V |  30.0C |
    +------------------------------------+--------+
  3 | 4.100V 4.100V 4.100V 4.110V        |  29.0C |
    +------------------------------------+--------+

OVMS# xrt batt temp
P:29C (29C..29C) 1:29C 2:30C 3:29C

OVMS# me li xrt.bms.
xrt.bms.balancing                        2,4,8,10,13,14
xrt.bms.error                            0
xrt.bms.state1                           4
xrt.bms.state2                           1
xrt.bms.temp                             52°C
xrt.bms.type                             1

OVMS# me li v.b.c.
v.b.c.temp                               29,30,29°C
v.b.c.temp.alert                         0,0,0
v.b.c.temp.dev.max                       -0.33,0.67,-0.33°C
v.b.c.temp.max                           29,30,29°C
v.b.c.temp.min                           29,30,29°C
v.b.c.voltage                            4.11,4.1,4.105,4.1,4.105,4.1,4.105,4.105,4.105,4.105,4.1,4.1,4.1,4.11V
v.b.c.voltage.alert                      0,0,0,0,0,0,0,0,0,0,0,0,0,0
v.b.c.voltage.dev.max                    0.00643,-0.00357,0.00143,-0.00357,0.00143,-0.00357,0.00143,0.00143,0.00143,0.00143,-0.00357,-0.00357,-0.00357,0.00643V
v.b.c.voltage.max                        4.11,4.1,4.105,4.1,4.105,4.1,4.105,4.105,4.105,4.105,4.1,4.1,4.1,4.11V
v.b.c.voltage.min                        4.11,4.1,4.105,4.1,4.105,4.1,4.105,4.105,4.105,4.105,4.1,4.1,4.1,4.11V

OVMS# bms status
Voltage:
    Average: 3.925V [3.920V - 3.925V]
  Deviation: SD   1.20mV [max 2.49mV], 0 warnings, 0 alerts
Temperature:
    Average:  24.7C [ 24.0C -  25.0C]
  Deviation: SD   0.47C  [max 0.47C], 0 warnings, 0 alerts
Cells:
    +------------------------------------+--------+
  1 | 3.925V 3.925V 3.925V 3.925V 3.925V |  25.0C |
    +------------------------------------+--------+
  2 | 3.925V 3.925V 3.925V 3.925V 3.925V |  24.0C |
    +------------------------------------+--------+
  3 | 3.925V 3.925V 3.925V 3.920V        |  25.0C |
    +------------------------------------+--------+
OVMS# xrt batt temp
P:25C (25C..25C) 1:25C 2:24C 3:25C
OVMS#  me li xrt.bms.
xrt.bms.balancing
xrt.bms.error                            10
xrt.bms.state1                           4
xrt.bms.state2                           0
xrt.bms.temp                             31°C
xrt.bms.type                             1
OVMS# me li v.b.c.
v.b.c.temp                               25,24,25°C
v.b.c.temp.alert                         0,0,0
v.b.c.temp.dev.max                       0.33,-0.67,0.33°C
v.b.c.temp.max                           25,24,25°C
v.b.c.temp.min                           25,24,25°C
v.b.c.voltage                            3.925,3.93,3.925,3.925,3.925,3.925,3.925,3.925,3.925,3.925,3.925,3.925,3.925,3.925V
v.b.c.voltage.alert                      0,0,0,0,0,0,0,0,0,0,0,0,0,0
v.b.c.voltage.dev.max                    0.00321,0.00464,0.00286,-0.00429,-0.00357,-0.00357,0.00321,0.00321,0.00286,-0.00321,0.00321,-0.00429,0.0025,-0.00464V
v.b.c.voltage.max                        3.925,3.93,3.925,3.925,3.925,3.925,3.925,3.925,3.925,3.925,3.925,3.925,3.925,3.925V
v.b.c.voltage.min                        3.925,3.925,3.92,3.92,3.92,3.92,3.925,3.925,3.92,3.92,3.925,3.92,3.92,3.92V

<!--

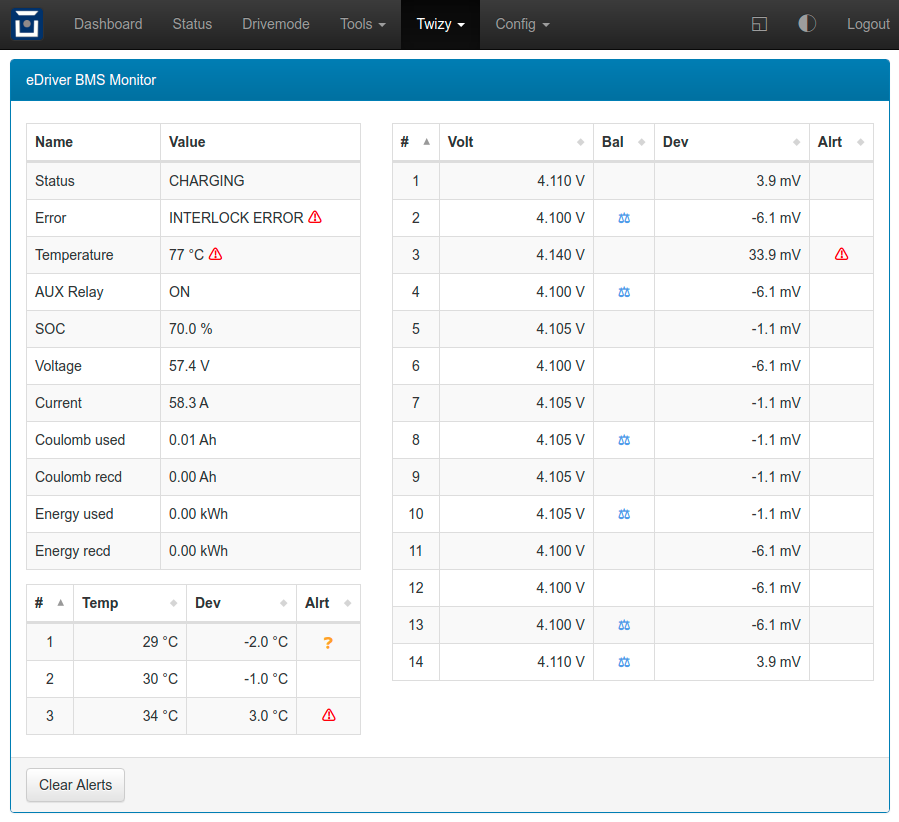

  Web UI page plugin:
    eDriver BMS Monitor
    Version 0.1  Michael Balzer <dexter@dexters-web.de>

  Dependencies:
    - none

  Installation:
    - Type:    Page
    - Page:    /usr/edrvmon
    - Label:   eDriver BMS
    - Menu:    Tools
    - Auth:    Cookie
-->

<style>
td i {
  font-style: normal;
}
td i.danger {
  color: red;
  font-weight: bold;
}
td i.warning {
  color: orange;
}
td i.balance {
  color: blue;
  font-weight: bold;
}
</style>


<div class="panel panel-primary panel-single receiver" id="edrvmon">
  <div class="panel-heading">eDriver BMS Monitor</div>
  <div class="panel-body">
    <div class="row">
      <div class="col-sm-5">
        <table id="tstate" class="table table-striped table-bordered table-hover" style="width:100%" />
        <table id="tcmods" class="table table-striped table-bordered table-hover" style="width:100%" />
      </div>
      <div class="col-sm-7">
        <table id="tcells" class="table table-striped table-bordered table-hover" style="width:100%" />
      </div>
    </div>
  </div>
  <div class="panel-footer">
    <button type="button" class="btn btn-default" data-target="#cmdres" data-cmd="bms reset">Clear Alerts</button>
    <samp class="samp-inline" id="cmdres"></samp>
  </div>
</div>


<script>
(function(){

  // Code translations:
  var statusName = {
    0: "OFF",
    1: "BMS INIT",
    2: "TRANSITION",
    3: "TRANSITION2",
    4: "CHARGING",
    5: "DRIVING",
    6: "CHARGING END1",
    7: "CHARGING END2",
    8: "BMS CONFIG",
    80: "BOOTLOADER READY",
    81: "BOOTLOADER FLASHING",
  };
  var errorName = {
    0: "ALL OK",
    1: "EEPROM ERROR",
    10: "INTERLOCK ERROR",
    11: "INTERNAL ERROR",
    12: "CURRENT SENSOR ERROR",
  };
  var auxstateName = {
    0: "OFF",
    1: "ON",
  };
  var alertName = {
    0: '',
    1: '<i class="warning">❓</i>',
    2: '<i class="danger">⚠</i>',
  };

  function codeName(map, code) {
    if (code == null) return "";
    else if (map[code] != null) return map[code];
    else return "Code " + code;
  }

  var $tstate, $tcmods, $tcells;

  // Init tables:
  $('#tstate').table({
    responsive: false,
    paging: false,
    searching: false,
    info: false,
    ordering: false,
    autoWidth: false,
    columns: [
      { title: "Name", className: "dt-body-left", width: "40%" },
      { title: "Value", className: "dt-body-left", width: "60%" },
    ],
    rowId: 0,
    responsive: true,
    initComplete: function(settings) { $tstate = this.api(); },
  });

  $('#tcmods').table({
    responsive: false,
    paging: false,
    searching: false,
    info: false,
    autoWidth: false,
    columns: [
      { title: "#", className: "dt-body-center", width: "10%" },
      { title: "Temp", className: "dt-body-right", width: "40%" },
      { title: "Dev", className: "dt-body-right", width: "40%" },
      { title: "Alrt", className: "dt-body-center", width: "10%" },
    ],
    rowId: 0,
    responsive: true,
    initComplete: function(settings) { $tcmods = this.api(); },
  });

  $('#tcells').table({
    responsive: true,
    paging: false,
    searching: false,
    info: false,
    autoWidth: false,
    columns: [
      { title: "#", className: "dt-body-center", width: "10%" },
      { title: "Volt", className: "dt-body-right", width: "30%" },
      { title: "Bal", className: "dt-body-center", width: "10%" },
      { title: "Dev", className: "dt-body-right", width: "30%" },
      { title: "Alrt", className: "dt-body-center", width: "10%" },
    ],
    rowId: 0,
    responsive: true,
    initComplete: function(settings) { $tcells = this.api(); },
  });

  // Receiver event handling:
  $('#edrvmon').on('msg:metrics', function(ev, upd) {

    var updkeys = Object.keys(upd).join();

    if (/(xrt\.bms\.|v\.b\.[cevs])/.test(updkeys)) {
      var dstate = [
        [ 'Status', codeName(statusName, metrics['xrt.bms.state1']) ],
        [ 'Error', codeName(errorName, metrics['xrt.bms.error']) ],
        [ 'Temperature', metrics['xrt.bms.temp']+' °C' ],
        [ 'AUX Relay', codeName(auxstateName, metrics['xrt.bms.state2']) ],
        [ 'SOC', Number(metrics['v.b.soc']).toFixed(1)+' %' ],
        [ 'Voltage', Number(metrics['v.b.voltage']).toFixed(1)+' V' ],
        [ 'Current', Number(metrics['v.b.current']).toFixed(1)+' A' ],
        [ 'Coulomb used', Number(metrics['v.b.coulomb.used']).toFixed(2)+' Ah' ],
        [ 'Coulomb recd', Number(metrics['v.b.coulomb.recd']).toFixed(2)+' Ah' ],
        [ 'Energy used', Number(metrics['v.b.energy.used']).toFixed(2)+' kWh' ],
        [ 'Energy recd', Number(metrics['v.b.energy.recd']).toFixed(2)+' kWh' ],
      ];
      $tstate.clear().rows.add(dstate).draw();
    }

    if (/v\.b\.c\.temp/.test(updkeys)) {
      var dcmods = [];
      for (var i = 0; i < metrics['v.b.c.temp'].length; i++) {
        var row = [ i+1,
          Number(metrics['v.b.c.temp'][i]).toFixed(0)+' °C',
          Number(metrics['v.b.c.temp.dev.max'][i]).toFixed(1)+' °C',
          codeName(alertName, metrics['v.b.c.temp.alert'][i]),
        ];
        dcmods.push(row);
      }
      $tcmods.clear().rows.add(dcmods).draw();
    }

    if (/(xrt\.bms\.balancing|v\.b\.c\.voltage)/.test(updkeys)) {
      var dcells = [];
      var bal = metrics["xrt.bms.balancing"] || [];
      for (var i = 0; i < metrics['v.b.c.voltage'].length; i++) {
        var row = [ i+1,
          Number(metrics['v.b.c.voltage'][i]).toFixed(3)+' V',
          bal.includes(i+1) ? '<i class="balance">⚖</i>' : '',
          (Number(metrics['v.b.c.voltage.dev.max'][i])*1000).toFixed(1)+' mV',
          codeName(alertName, metrics['v.b.c.voltage.alert'][i]),
        ];
        dcells.push(row);
      }
      $tcells.clear().rows.add(dcells).draw();
    }

  });

})();
</script>

	if(MeasuredCellMaxVoltage>(CellMaxVoltage+100)){ /*At least on cell exceeds voltage limit(+100mV), Emergency off*/
		UsedWh=0; /*Reset Wh meter*/
		BMS_State=CHARGING_END1;
	}

	if(id155.Data[0]==1 && (systimePwrCtl+500000)<systime){/*Terminate charging after 500s on power level1*/
		UsedWh=0; /*Reset Wh meter*/
		BMS_State=CHARGING_END1;
	}
