Twizy battery for prototype

Guten Morgen, ich bin David und ich bin neu im Forum, das aus Italien schreibt.
Ich bitte um Ihre Hilfe, um die RENAULT TWIZY BATTERIE für unser Entwicklungsprotokoll wiederzuverwenden. Ich habe ein paar Fragen zu stellen:

1) WIE VIELE LG CHEM CELLS (AMP) GIBT ES?

2) KANN ICH IHR BMS VERWENDEN, UM STROM ZU LADEN UND ZU ENTZIEHEN?

3) ÄNDERN SIE DAS BMS. WAS INSTALLIERE ICH UND WIE KONFIGURIERE ICH ES?

DANKE EUCH ALLEN

Hello David.

Welcome to the Twizy-Forum.

Unfortunately the translation of your questions to German is very poor.
Could you please write your questions in English?
This will probably help us to support you.

Thank you.

Hello, I'm Davide and I'm new on your beautiful forum and I write from Italy.

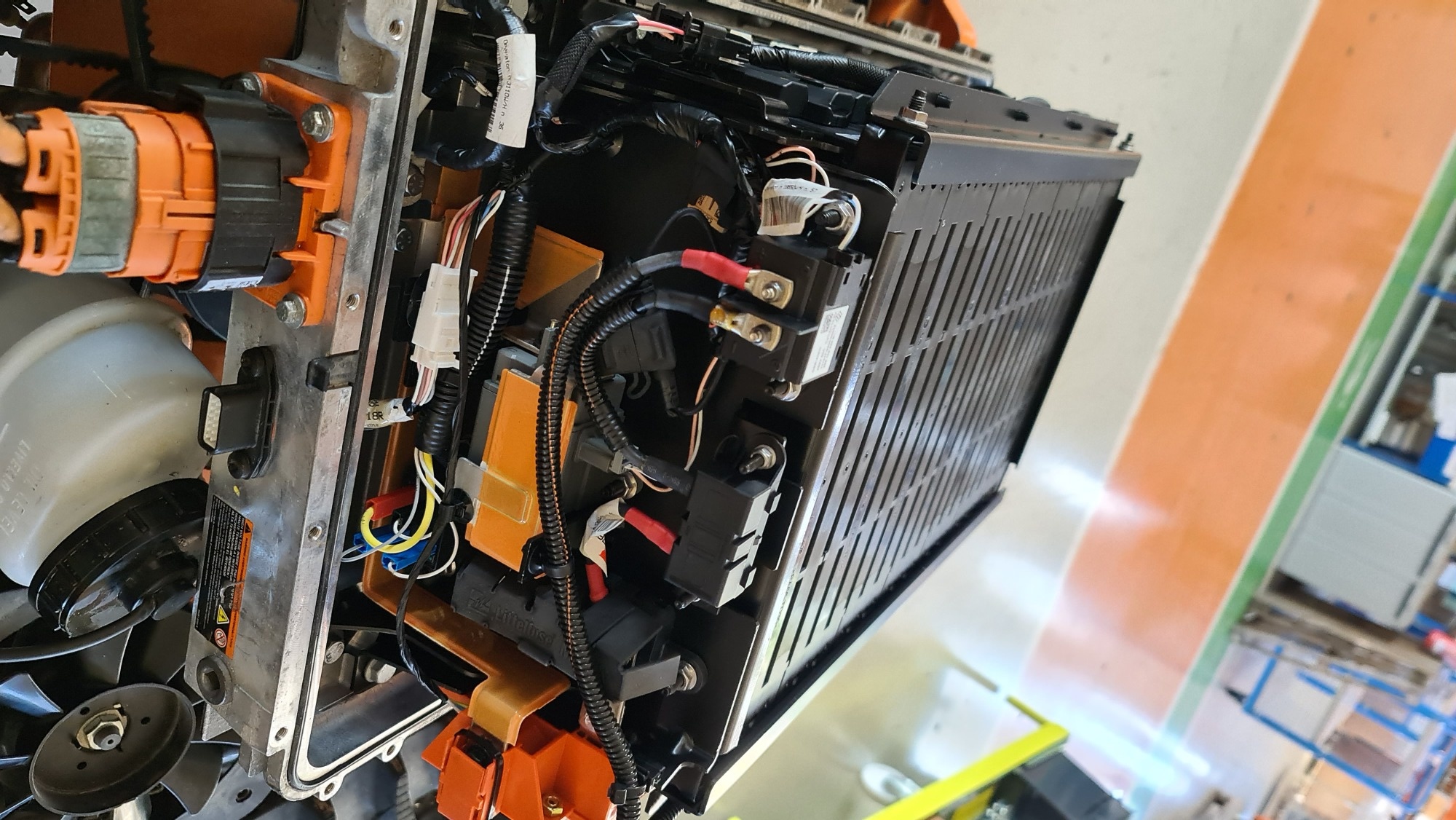

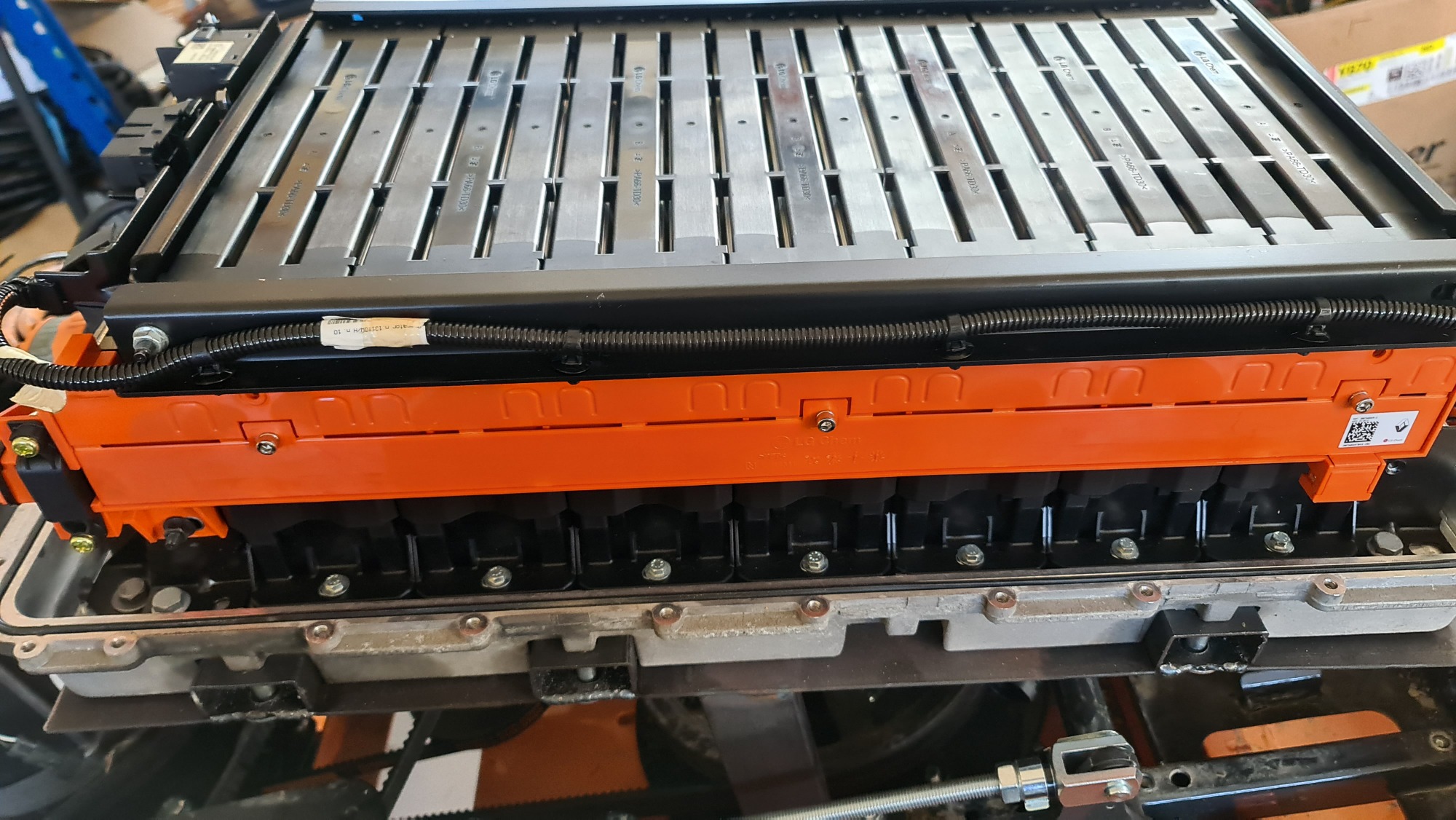

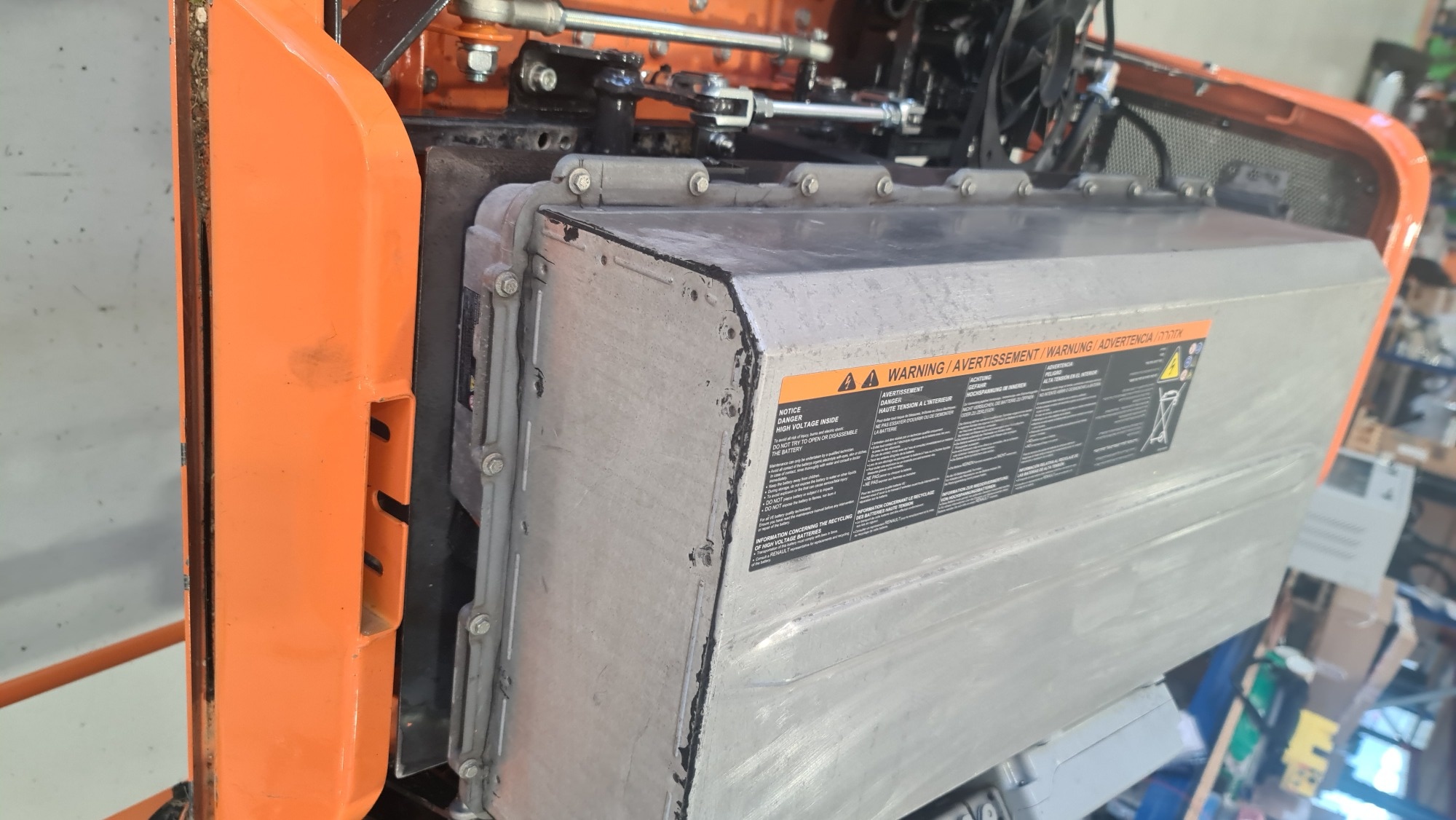

I ask for your help to reuse the RENAULT TWIZY BATTERY for one of our prototypes under development, the vehicle is already equipped with our autonomous driving system. I have some questions to ask:

1) the cells of the lg chem on the battery pack from how many amps are there individually?


2) CAN I USE YOUR ORIGINAL BMS TO TAKE AND CHARGE THE BATTERIES?

3) IF YOU CANNOT USE ITS WHICH BMS DO YOU RECOMMEND ME TO BUY?

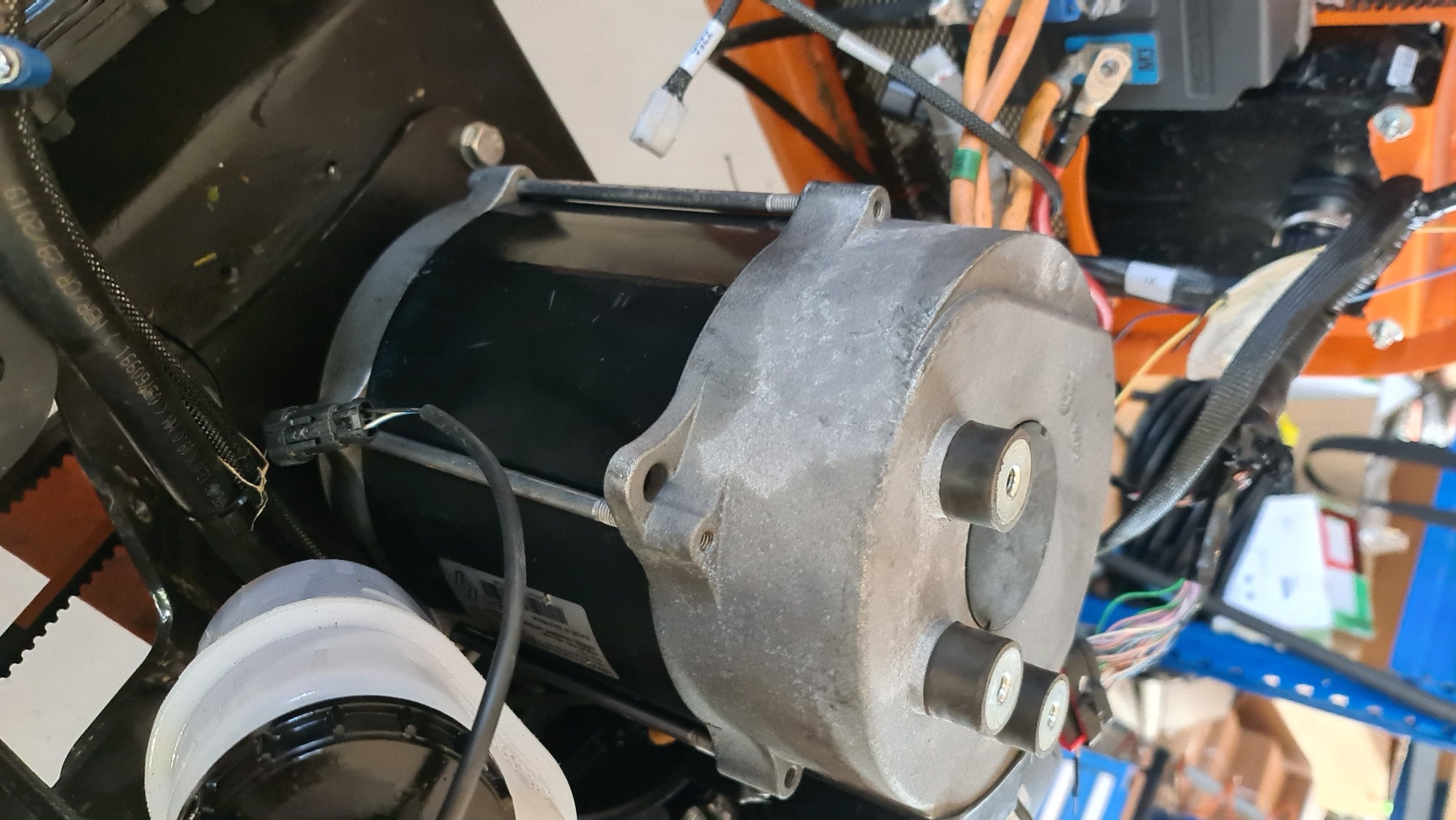

WE HAVE COMPLETELY REPROGRAMMED THE SEVCON GEN 4 AS A WATER PUMP FUNCTION USING THE TWIZY MOTOR FLANGED ON OUR REQUEST.



THANK YOU ALL

Ist das für eine Agrar-Gerät.
Sind sie aus der Region Südtirol ?
Von hier ?


Twizy Batterie 7 x Doppelzellen ( Nominal 3,7 V x 2) 7,4V *7 = 51,8 V 58,4 V max. Ladeende

BMS 14S

Goggle-Translat

Is that for an agricultural device.
Are you from the South Tyrol region?
From here?

Twizy battery 7 x double cells (nominal 3.7 V x 2) 7,4V *7 = 51,8 V. 58,4V End of loading

BMS 14S

Hello .
I am david of research and development in www.mdbsrl.com/

I'm using the propulsion unit of a twizy to run one of our cars ...

can you tell me the type of bms I have to use and where to buy it?

however we are builders in Abruzzo and we sell all over the world

Amp cells?
single?

6,1 kWh
117 Ah 7 x Doppelzelle a '6 Pouchzellen 2 x (3 x 39 Ah)
51,8 V

Beispiel :
Example:
www.power-and-storage.de/shop/48V-BMS-Victron-Energy-KIT-3-mit-Software-p196836312
