Diode inside traction battery

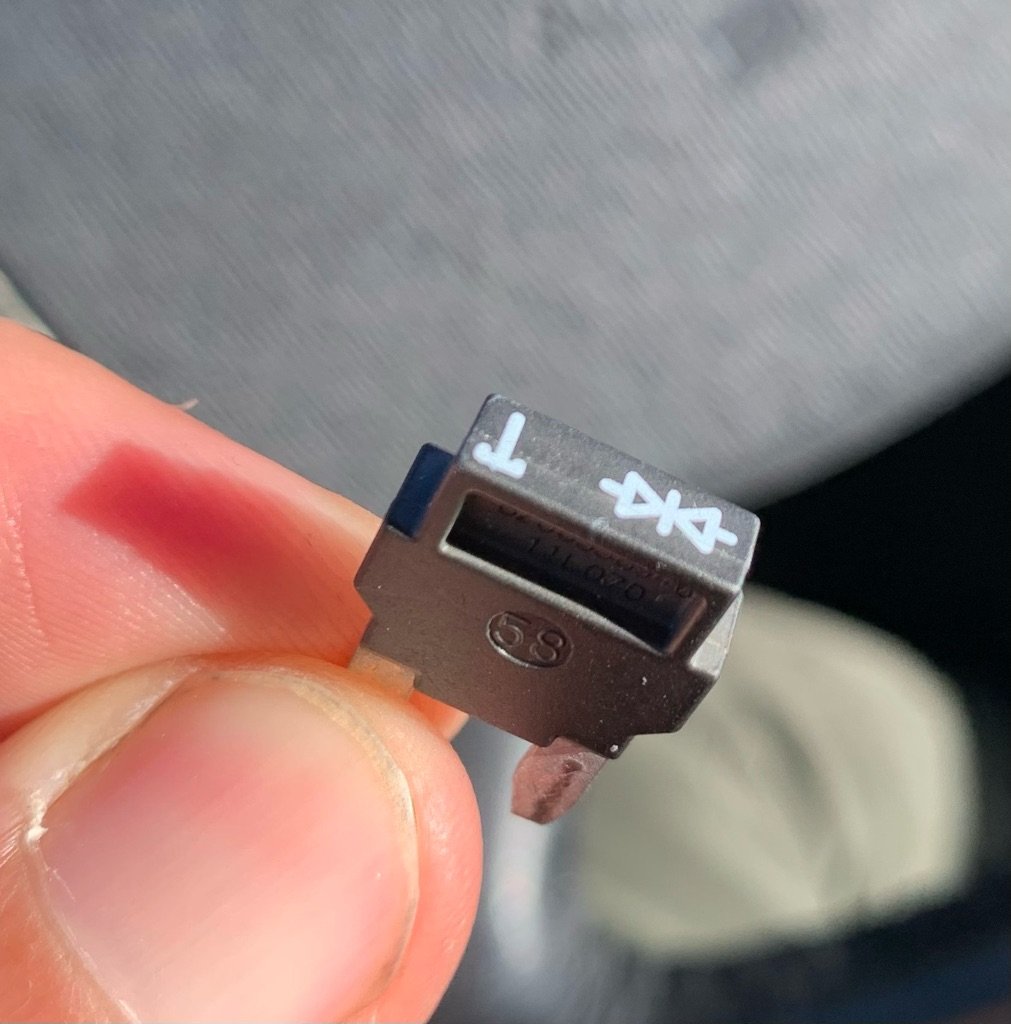

Hello everyone, I'm new. I recently bought a Twizy with a dead battery. Inside the battery, I found a dead diode which is connected to the main relay. Please help me find such a diode, I do not know where to buy it. Thank you!

Anhänge:

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

euver
Platinum Boarder

Beiträge: 3793
Dank erhalten: 1133

08 Nov 2022 16:09 #236391 von euver

Diode inside traction battery

-> Suppression-Diode

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Mtn
Autor
Fresh Boarder

Beiträge: 20
Dank erhalten: 3

08 Nov 2022 16:12 #236392 von Mtn

Diode inside traction battery

Thanks for the link to the article, but I'm looking for where to buy such a diode.

Danke für den Link zum Artikel, aber ich suche, wo ich eine solche Diode kaufen kann.

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

euver
Platinum Boarder

Beiträge: 3793
Dank erhalten: 1133

08 Nov 2022 16:14 #236393 von euver

Diode inside traction battery

and www.twizy-forum.de/werkstatt-twizy/71630-aw-innenansicht-vom-akku?start=165#174210

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

TwizyChrisy
10k Boarder
Der Trend geht klar zum Zweittwizy äähhh....

Beiträge: 18659
Dank erhalten: 10406

08 Nov 2022 17:06 #236395 von TwizyChrisy

Diode inside traction battery

Look for the 500A Fuse. The Diode is normally not the case for a problem.

Mehr Twizys, mehr Freude.

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

stromkreisparadies
Platinum Boarder
Markus

Beiträge: 3752
Dank erhalten: 1024

08 Nov 2022 17:25 - 08 Nov 2022 17:57 #236397 von stromkreisparadies

Diode inside traction battery

the diode shoud have the function to supress the voltages when the relais is switched off. if it is dead or not connected the relais schould work, but maybe kill every electronic device in the car.

Grüße von Markus

-> Twizy Technic, LED Tagfahrlicht, LED Innenbeleuchtung, Sitzheizung, Radio mit Freisprecheinrichtung
-> Brammo Empulse R
-> 2x Elektrofahrrad (Stadt-Trekking und Downhill für den Wald)

Letzte Änderung: 08 Nov 2022 17:57 von stromkreisparadies.

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Mtn
Autor
Fresh Boarder

Beiträge: 20
Dank erhalten: 3

10 Nov 2022 09:20 #236446 von Mtn

Diode inside traction battery

Yes, the diode rarely breaks, but this is my case. The diode does not work, so the main relay does not turn on. This is a TVS diode and I can't find it for sale anywhere, does anyone know the reference number of this diode? The number that is written on the diode does not help in the search.

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

stromkreisparadies
Platinum Boarder
Markus

Beiträge: 3752
Dank erhalten: 1024

10 Nov 2022 14:37 #236462 von stromkreisparadies

Diode inside traction battery

what do you mean? is it shorted? why do you think it is broken? normally it is in parallel to the coils. therefore the main coils schould work even if this diode is broken!

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Mtn
Autor
Fresh Boarder

Beiträge: 20
Dank erhalten: 3

10 Nov 2022 15:35 #236463 von Mtn

Diode inside traction battery

I check the diode with a multimeter in continuity mode. The diode has no contact on both sides, i.e. it shows "0". Am I doing it right? If I'm wrong please correct me

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Berthold
Platinum Boarder

Beiträge: 2017
Dank erhalten: 1825

10 Nov 2022 15:52 #236464 von Berthold

Diode inside traction battery

If 0 means high resitance in both directions everything is ok. Normaly the Diode causes no problem.

Twizy Intens ; EZ 11/16 ; Parrot mit Pioneer-Sub ; H145/13 V135/13; Spacer 10mm; Zusatzlager, Lader Ventilation optimiert ; Mario Hack ; Kaufakku; Rückfahrkamera, Lüftungsschlitze freigeräumt , LED Frontlicht, ToM , LEGASTHENIKER aus NRW

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Snorre
Moderator

Beiträge: 5822
Dank erhalten: 3830

10 Nov 2022 16:22 - 10 Nov 2022 17:59 #236468 von Snorre

Diode inside traction battery

@Mtn:
In case that you are sure that your diode ist damaged, you must realized, that nobody in the forum seems to know a supllier for it.

I found these two names relating to that diode: "MBR1100" and "MBRS1100"
Maybe this could help you, but probably not.

In case that your are not sure that your diode is damaged, I think it would be a good idea to tell us about the problem that you are suffering from and what happened before.

The more detailed you are reporting, the better for us.
Then we will maybe able to help you to find the origin of the problem.

Twizy Cargo, EZ 07/2014, 110.000 km, Stand 09/2024

Letzte Änderung: 10 Nov 2022 17:59 von Snorre.

Folgende Benutzer bedankten sich: Rebound

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

TwizyChrisy
10k Boarder
Der Trend geht klar zum Zweittwizy äähhh....

Beiträge: 18659
Dank erhalten: 10406

10 Nov 2022 18:28 #236475 von TwizyChrisy

Diode inside traction battery

Mtn schrieb: Yes, the diode rarely breaks, but this is my case. The diode does not work, so the main relay does not turn on. This is a TVS diode and I can't find it for sale anywhere, does anyone know the reference number of this diode? The number that is written on the diode does not help in the search.

Did you ever think about a bug in the relais? You would NOT be the first one with this problem.

Mehr Twizys, mehr Freude.

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Mtn
Autor
Fresh Boarder

Beiträge: 20
Dank erhalten: 3

10 Nov 2022 19:15 - 10 Nov 2022 19:16 #236478 von Mtn

Diode inside traction battery

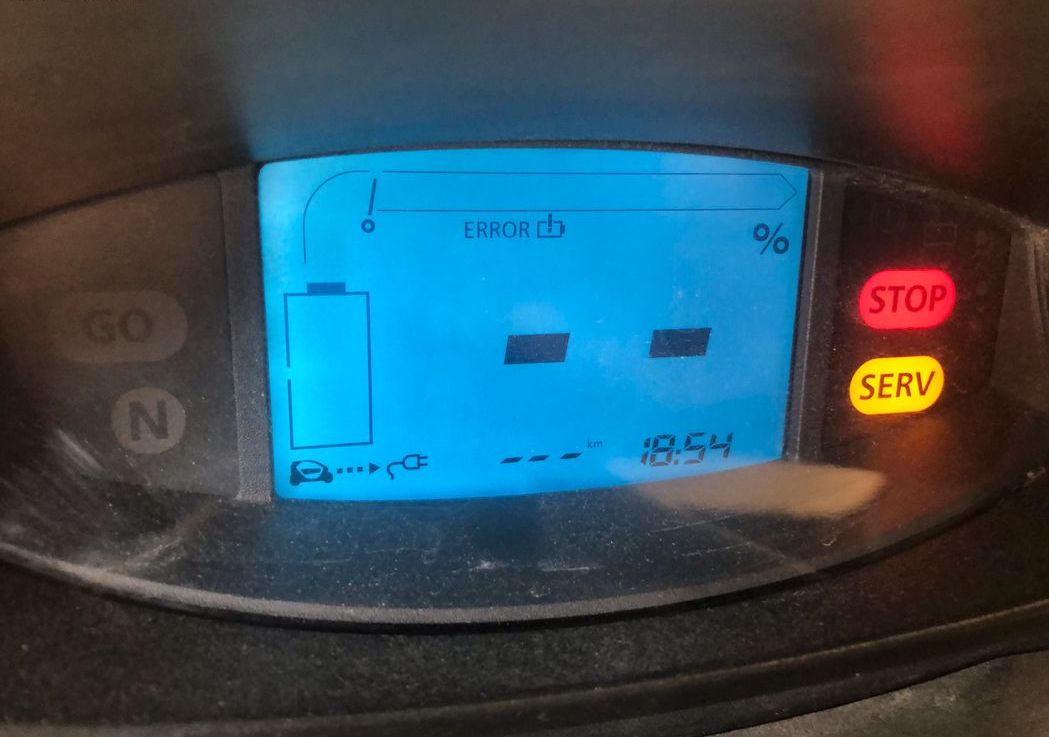

Yes, I'm not sure if my diode is broken. I have no circuit diagrams, without them it is very difficult to look for a breakdown. This happened while charging from the home network.
Diagnostic results using elm327.
1. DF192 No multiplex signal from BMS
2. DF193 No multiplex signal from BMS
3. DF313 No multiplex signal from BMS
4. DF314 No multiplex signal from BMS
5. DF512 No multiplex signal from BCB
6. DF496 No traction battery ECU

Anhänge:

Letzte Änderung: 10 Nov 2022 19:16 von Mtn.

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

TwizyChrisy
10k Boarder
Der Trend geht klar zum Zweittwizy äähhh....

Beiträge: 18659
Dank erhalten: 10406

10 Nov 2022 20:41 #236479 von TwizyChrisy

Diode inside traction battery

One more time....
Did you check the funktion of the relais?
Did you check the 500A main fuse?

Mehr Twizys, mehr Freude.

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

Derk
Junior Boarder

Beiträge: 68
Dank erhalten: 78

10 Nov 2022 22:09 - 10 Nov 2022 22:16 #236482 von Derk

Diode inside traction battery

Mtn schrieb: The diode has no contact on both sides, i.e. it shows "0". Am I doing it right? If I'm wrong please correct me

You can't test the diode with a standard multimeter, unless it (the diode) died in a short circuit. Typical breakthrough voltage (when it starts to conduct) is way beyond the voltage supplied by the Multimeter when reading pass-through or resistance. The diode's purpose is overvoltage or transient protection, so unless you apply a suitable high transient voltage, it won't conduct.

I happen to have access to suitable testing equipment (pulse voltage generator) and would be able to verify the diode's functionality, but I don't think it's worth the effort. The problem seems to be elsewhere.

Regards,
Derk
