A new Twizy display project

  • Snorre
  • Snorres Avatar
  • Platinum Boarder
  • Platinum Boarder
  • Beiträge: 5822
  • Dank erhalten: 3830
08 Okt 2022 21:21 #235108 von Snorre
A new Twizy display project

Delvecchio schrieb: ..


..
No words... only happiness because this one was an huge task for me. :woohoo:



Congratulation.
I`m looking forward to the first firmware update.

Twizy Cargo, EZ 07/2014, 110.000 km, Stand 09/2024
Folgende Benutzer bedankten sich: JPB, Delvecchio

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

  • Delvecchio
  • Delvecchios Avatar
  • Autor
  • Pro Boarder
  • Pro Boarder
  • Fabio java
  • Beiträge: 577
  • Dank erhalten: 905
12 Okt 2022 12:19 - 12 Okt 2022 12:22 #235258 von Delvecchio
A new Twizy display project

Snorre schrieb: .
V_cell-1 temp module-1 V_cell-2
V_cell-3 temp module-2 V_cell-4
V_cell-5 temp module-3 V_cell-6
V_cell-7 temp module-4 V_cell-8
V_cell-9 temp module-5 V_cell-10
V_cell-11 temp module-6 V_cell-12
V_cell-13 temp module-7 V_cell-14

Just to be sure, because I didn't open the traction battery, for example temperature sensor 1 is reffered to cell 1 and cell 2, or cell 1 and cell 8?
Letzte Änderung: 12 Okt 2022 12:22 von Delvecchio.

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

  • Snorre
  • Snorres Avatar
  • Platinum Boarder
  • Platinum Boarder
  • Beiträge: 5822
  • Dank erhalten: 3830
12 Okt 2022 13:24 #235259 von Snorre
A new Twizy display project

Delvecchio schrieb:

Snorre schrieb: .
V_cell-1 temp module-1 V_cell-2
V_cell-3 temp module-2 V_cell-4
V_cell-5 temp module-3 V_cell-6
V_cell-7 temp module-4 V_cell-8
V_cell-9 temp module-5 V_cell-10
V_cell-11 temp module-6 V_cell-12
V_cell-13 temp module-7 V_cell-14

Just to be sure, because I didn't open the traction battery, for example temperature sensor 1 is reffered to cell 1 and cell 2, or cell 1 and cell 8?


The traction battery includes 7 battery modules.
Each modules consists of 2 battery cells and one temperature sensor.
I never checked it in detail, but I'm quite sure module 1 consists of cell 1, cell 2 and sensor 1,
module 2 consists of cell 3, cell 4 and sensor,
and so on.

Twizy Cargo, EZ 07/2014, 110.000 km, Stand 09/2024
Folgende Benutzer bedankten sich: Delvecchio

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

  • Snorre
  • Snorres Avatar
  • Platinum Boarder
  • Platinum Boarder
  • Beiträge: 5822
  • Dank erhalten: 3830
12 Okt 2022 15:00 - 12 Okt 2022 15:01 #235268 von Snorre
A new Twizy display project
Suggestions for improvement:

Delvecchio schrieb: It can display, in realtime, these parameters:
- total battery voltage

Each value has both a numerical and a graphical rappresentation.
The graphical rappresentation is given by an arch bar, with 32 segments, for first plane value, and by an orrizontal bar, with 16 segments, for each value in second plane. The bars are scaled in accordance to values range.


At the moment the value range for the total battery voltage seem to bei 0 - 58 V.
When the battery is nearly at 0% SOC the battery has a voltage about 46 V.
But the graphical representation for 46 V will pretend about 75%.
Could you adapt the value range for the total battery voltage to 46 - 58 V please?


Another item:
Is it possible to display the elapsed trip time to mm:ss instead of just one or two digits for the minutes?

Twizy Cargo, EZ 07/2014, 110.000 km, Stand 09/2024
Letzte Änderung: 12 Okt 2022 15:01 von Snorre.
Folgende Benutzer bedankten sich: Delvecchio

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

  • Delvecchio
  • Delvecchios Avatar
  • Autor
  • Pro Boarder
  • Pro Boarder
  • Fabio java
  • Beiträge: 577
  • Dank erhalten: 905
12 Okt 2022 18:26 - 12 Okt 2022 18:30 #235273 von Delvecchio
A new Twizy display project

Snorre schrieb: At the moment the value range for the total battery voltage seem to bei 0 - 58 V.
...
Could you adapt the value range for the total battery voltage to 46 - 58 V please?

You are right!
I'll fix it for sure.

These are the actual ranges, may be you find something else wrong...
#define SOCMIN 0
#define SOCMAX 100
#define SOHMIN 0
#define SOHMAX 100
#define KWHMIN 0
byte batKwh = 61;
#define AHMIN 0
#define AHMAX 500
#define BTMIN 0
#define BTMAX 60
#define RPMMIN 0
#define RPMMAX 9999
#define NMMIN 0
#define NMMAX 100
#define MTMIN 0
#define MTMAX 120
#define PCKMIN 0
#define PCKMAX 58.8
#define C14MIN 0
#define C14MAX 4.20
#define T7MIN 0
#define T7MAX 60
#define CTMIN 0
#define CTMAX 60
#define CKWHMIN 0
#define CKWHMAX 2.2
For example, I'm not sure about the charger temp min/max (CTMIN/CTMAX).
.

Snorre schrieb: Another item:
Is it possible to display the elapsed trip time to mm:ss instead of just one or two digits for the minutes?

In the layout where it is actualy displayed, no. There is space only for 3 digits.
But in the future "Trip page", I'll reserve more space for trip time in mm:ss format.
Letzte Änderung: 12 Okt 2022 18:30 von Delvecchio.

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

  • Snorre
  • Snorres Avatar
  • Platinum Boarder
  • Platinum Boarder
  • Beiträge: 5822
  • Dank erhalten: 3830
12 Okt 2022 20:46 - 12 Okt 2022 20:50 #235288 von Snorre
A new Twizy display project

Delvecchio schrieb: For example, I'm not sure about the charger temp min/max (CTMIN/CTMAX).


CTMAX is 70°C
CTMIN in a very cold winter could maybe become -10°C.
But I think 0°C as value will be okay. ;)

BTMAX is the maximum battery temperature?
I think that the BMS prevents the battery of higher temperatures than ~45°C.
But this isn`t proofed.

Twizy Cargo, EZ 07/2014, 110.000 km, Stand 09/2024
Letzte Änderung: 12 Okt 2022 20:50 von Snorre.
Folgende Benutzer bedankten sich: Delvecchio

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

  • Delvecchio
  • Delvecchios Avatar
  • Autor
  • Pro Boarder
  • Pro Boarder
  • Fabio java
  • Beiträge: 577
  • Dank erhalten: 905
12 Okt 2022 21:48 #235293 von Delvecchio
A new Twizy display project

Snorre schrieb: BTMAX is the maximum battery temperature?

Yes, it is.

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

  • villadsen
  • villadsens Avatar
  • Top Boarder
  • Top Boarder
  • Beiträge: 1005
  • Dank erhalten: 517
13 Okt 2022 10:28 #235316 von villadsen
A new Twizy display project
Hi Fabio,
I received the display yesterday and it looks really good. Tonight I will mount it, but then I will be on holiday for 10 days where I wont be able to test it.
Regards
Thomas V.

Einer von weniger als 50 Twizyfahrer in Dänemark
Folgende Benutzer bedankten sich: Delvecchio

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

  • Delvecchio
  • Delvecchios Avatar
  • Autor
  • Pro Boarder
  • Pro Boarder
  • Fabio java
  • Beiträge: 577
  • Dank erhalten: 905
13 Okt 2022 16:36 - 13 Okt 2022 16:36 #235344 von Delvecchio
A new Twizy display project
Nice to think a Twizy o'meter will run on Denmark streets!
Letzte Änderung: 13 Okt 2022 16:36 von Delvecchio.

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

  • Delvecchio
  • Delvecchios Avatar
  • Autor
  • Pro Boarder
  • Pro Boarder
  • Fabio java
  • Beiträge: 577
  • Dank erhalten: 905
13 Okt 2022 22:36 - 13 Okt 2022 22:53 #235374 von Delvecchio
A new Twizy display project
Time has came for an anticipation of what you'll find in the firmware update I will release in a few days. B)
Warnung: Spoiler! [ Zum Anzeigen klicken ]

If something sounds not good to you, please tell me. There is still time for "last minute" changes.
Tomorrow I'll post some picture of the new pages, taken from maikt unit.
Letzte Änderung: 13 Okt 2022 22:53 von Delvecchio.
Folgende Benutzer bedankten sich: Snorre, maikt, Kerstin66, HollandHannes, green_fox, benjiw46

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

  • HollandHannes
  • HollandHanness Avatar
  • Junior Boarder
  • Junior Boarder
  • Beiträge: 73
  • Dank erhalten: 41
14 Okt 2022 12:22 #235395 von HollandHannes
A new Twizy display project
Exiting - can't wait.
Again, many thanks for doing it!

2012 Twizy Carbon
2016 Cargo in Baby Blau
Folgende Benutzer bedankten sich: Delvecchio

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

  • Snorre
  • Snorres Avatar
  • Platinum Boarder
  • Platinum Boarder
  • Beiträge: 5822
  • Dank erhalten: 3830
14 Okt 2022 14:13 #235406 von Snorre
A new Twizy display project

Delvecchio schrieb: If something sounds not good to you, please tell me. There is still time for "last minute" changes.
Tomorrow I'll post some picture of the new pages, taken from maikt unit.


I'm looking forward to the new firmware.

Can you please writes some words about the firmware update procedure?
I hope, that the part with the usb connector and the blackbox can be done with linux os too, because I have no Microsoft hardware at all.

Twizy Cargo, EZ 07/2014, 110.000 km, Stand 09/2024

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

  • Delvecchio
  • Delvecchios Avatar
  • Autor
  • Pro Boarder
  • Pro Boarder
  • Fabio java
  • Beiträge: 577
  • Dank erhalten: 905
14 Okt 2022 14:34 - 14 Okt 2022 14:34 #235407 von Delvecchio
A new Twizy display project

Snorre schrieb: Can you please writes some words about the firmware update procedure?

Of course. I tested the updating procedure in these days, to be sure what write here.

Snorre schrieb: I hope, that the part with the usb connector and the blackbox can be done with linux os too, because I have no Microsoft hardware at all.

This could be a problem. :blush:
Give a look at this page
and read this part: Flash firware at your device/Linux or mac OS/second way
If this make sense to you, I think it could be possible.
I have no experience with linux OS.
Letzte Änderung: 14 Okt 2022 14:34 von Delvecchio.
Folgende Benutzer bedankten sich: Snorre

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

  • Delvecchio
  • Delvecchios Avatar
  • Autor
  • Pro Boarder
  • Pro Boarder
  • Fabio java
  • Beiträge: 577
  • Dank erhalten: 905
14 Okt 2022 17:45 - 14 Okt 2022 18:04 #235419 von Delvecchio
A new Twizy display project
Here are the photos taken from Maikt unit... I forgot the keyboard....





.

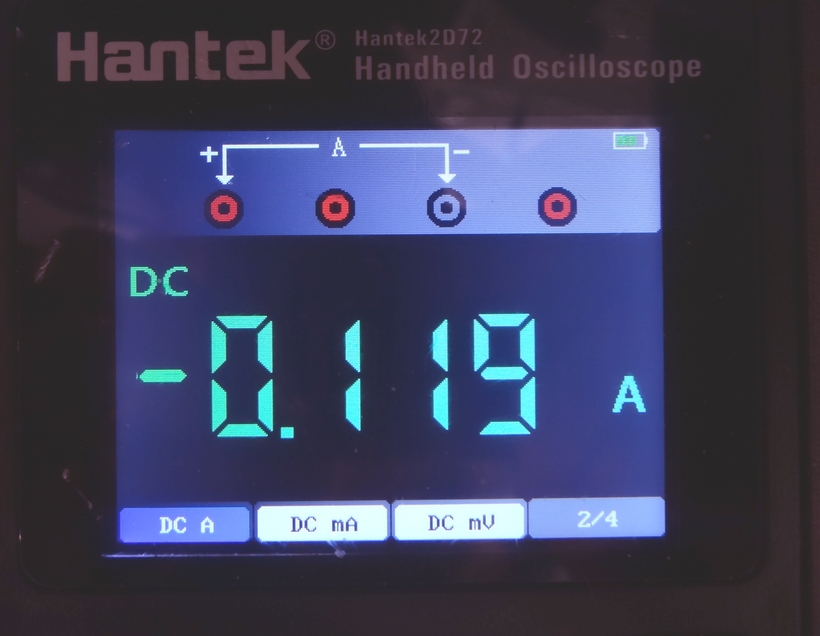

I was surprised that with Wi-fi on the consumption in active mode increases only a little (119mah, in total). In sleep mode is the same as before, because I switch off Wi-fi radio.
Letzte Änderung: 14 Okt 2022 18:04 von Delvecchio.
Folgende Benutzer bedankten sich: Snorre, maikt, villadsen, Ulli-et-Tom, Kerstin66, HollandHannes, Kangoo

Bitte Anmelden oder Registrieren um der Konversation beizutreten.

  • stromkreisparadies
  • stromkreisparadiess Avatar
  • Platinum Boarder
  • Platinum Boarder
  • Markus
  • Beiträge: 3752
  • Dank erhalten: 1024
14 Okt 2022 19:40 #235421 von stromkreisparadies
A new Twizy display project
dont show the cell values. show difference to mean (and mean) this is way more interesting.

Grüße von Markus

-> Twizy Technic, LED Tagfahrlicht, LED Innenbeleuchtung, Sitzheizung, Radio mit Freisprecheinrichtung
-> Brammo Empulse R
-> 2x Elektrofahrrad (Stadt-Trekking und Downhill für den Wald)

Bitte Anmelden oder Registrieren um der Konversation beizutreten.
